The fuses and fuse box of the 2024 Buick Encore GX are essential parts that look out for the electrical system. Typically situated under the engine compartment or beneath the dashboard, the fuse box holds a variety of fuses with differing amperage ratings. These fuses are essential safety devices that guard against overloads, short circuits, and electrical malfunctions for the car’s electrical systems. A fuse will blow in a circuit when it draws too much current, protecting the linked part from harm. The fuse box is a crucial component of the electrical system of the 2024 Buick Encore GX. It keeps various vehicle functions operating smoothly and makes diagnosing and resolving electrical problems easier. This eventually improves road safety and dependability.
2024 Buick Encore GX Specs, Price, Features, Mileage and Review
Electrical System
Electrical System Overload
The vehicle has fuses and circuit breakers to protect against an electrical system overload. When the current electrical load is too heavy, the circuit breaker opens and closes, protecting the circuit until the current load returns to normal or the problem is fixed. This greatly reduces the chance of circuit overload and fire caused by electrical problems. Fuses and circuit breakers protect power devices in the vehicle. If there is a problem on the road and a fuse needs to be replaced, the same amperage fuse can be borrowed. To check a fuse, look at the band inside the fuse. If the band is broken or melted, replace the fuse. Be sure to replace a bad fuse with a fuse of the identical size and rating.
Replacing a Blown Fuse
- Turn off the vehicle.
- Locate the fuse puller in the engine compartment fuse block.
- Use the fuse puller to remove the fuse from the top or side.
- If the fuse must be replaced immediately, borrow a replacement fuse with the same amperage from the fuse block. Choose a vehicle feature that is not needed to safely operate the vehicle. Repeat Steps 2-3.
- Insert the replacement fuse into the empty slot of the blown fuse.
At the next opportunity, see your dealer to replace the blown fuse.
Headlamp Wiring
An electrical overload may cause the lamps to go on and off, or in some cases to remain off. Have the headlamp wiring checked right away if the lamps go on and off or remain off.
Windshield Wipers
If the wiper motor overheats due to heavy snow or ice, the windshield wipers will stop until the motor cools and will then restart. Although the circuit is protected from electrical overload, overload due to heavy snow or ice may cause wiper linkage damage. Always clear ice and heavy snow from the windshield before using the windshield wipers. If the overload is caused by an electrical problem and not snow or ice, be sure to get it fixed.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of damage caused by electrical problems.
Danger
Fuses and circuit breakers are marked with their ampere rating. Do not exceed the specified amperage rating when replacing fuses and circuit breakers. Use of an oversized fuse or circuit breaker can result in a vehicle fire. You and others could be seriously injured or killed.
Warning
Installation or use of fuses that do not meet GM’s original fuse specifications is dangerous. The fuses could fail, and result in a fire. You or others could be injured or killed, and the vehicle could be damaged.
2024 Buick Encore GX Specs, Price, Features, Mileage and Review
Engine Compartment Fuse Block
To remove the fuse block cover, squeeze the clip and lift it up.
Caution
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.
The vehicle may not be equipped with all of the fuses, relays, and features shown.
Micro Fuses | Usage |
F02 | CLSTR |
Micro Fuses | Usage |
F03 | N/A |
F06 | OSRVM DEFOG |
F07 | L/GATE RELSE |
F08 | N/A |
F09 | VENT SEAT |
F10 | N/A |
F11 | N/A |
F12 | N/A |
F14 | ISRVM REAR VIEW CAMERA |
F15 | N/A |
F16 | HDLP LVL |
F17 | N/A |
F18 | FTZM |
F19 | N/A |
F20 | N/A |
F22 | TRLR ST/TRN LT – TRLR |
F24 | ESCL |
F25 | ECM TCM RUN/CRNK |
F26 | FRT/REAR WSW PUMP |
Micro Fuses | Usage |
F27 | IGN COIL-GAS |
F28 | AERO SH |
F29 | AHL AFL MDL |
F31 | ECM PT2 |
F32 | ENG COMP2 |
F33 | RVC |
F34 | FRT FOG LP |
F35 | ENG COMP1 |
F36 | ECM PT1 |
F38 | TRLR PRK LAMP – TRLR |
F40 | N/A |
F41 | REAR WPR |
F42 | HORN |
F44 | REAR WPR PRK |
F45 | A/C CLTCH |
F46 | N/A |
F47 | ECM BATT-GAS |
F49 | HDLP HI LH |
F50 | N/A |
Micro Fuses | Usage |
F51 | HDLP HI RH |
F52 | TRLR ST/TRN RT – TRLR |
F53 | AUX WATER PUMP |
F54 | PEPS |
F56 | CNSTR VENT SOL-GAS |
F57 | N/A |
F58 | TCM BATT |
Spare Fuses | Usage |
SF01 | SPARE |
SF02 | SPARE |
SF03 | SPARE |
SF04 | SPARE |
SF05 | SPARE |
SF06 | SPARE |
ET Fuses | Usage |
F48 | N/A |
J-Case Fuses | Usage |
F01 | N/A |
F05 | N/A |
F13 | REAR WNDW DEFOG |
F21 | E-BOOST PWR1 |
F23 | STRTR PINION |
F59 | N/A |
F62 | N/A |
F63 | N/A |
M-case Fuses | Usage |
F04 | FRT WPR |
F30 | STRTR SOL |
F37 | AUX OIL PUMP |
F39 | N/A |
F43 | PWR WNDW RT |
F55 | PWR WNDW LT |
F60 | N/A |
F61 | N/A |
Mini Relays | Usage |
K03 | RUN/CRNK |
K04 | REAR DEFOG |
K06 | STRTR PINION |
K08 | PT RLY |
K09 | N/A |
HC Micro Relays | Usage |
K01 | N/A |
K02 | N/A |
K05 | STRTR SOL |
K07 | A/C CNTRL |
K10 | N/A |
Ultra Micro Relays | Usage |
K11 | N/A |
Instrument Panel Fuse BlockThe instrument panel fuse block is on the underside of the driver side instrument panel. To access the fuses, open the fuse cover by pulling out. To reinstall the cover, insert the top tab first, then push the cover back into its original location.
Fuse | Usage |
F01 | LUMBAR |
F02 | SUNROOF |
Fuse | Usage |
F03 | VBAT_3 |
F04 | VBAT_7 |
F05 | VBAT_6 |
F06 | AUTO HVAC |
F07 | CGM |
F08 | ST_WHL_HTR |
F09 | DISPLAY |
F10 | RADIO |
F11 | ONSTAR (ERA) |
F12 | PARK_ASSIST |
F13 | MAN. HVAC |
F14 | WL CHARGER |
F15 | VBAT_2 |
F16 | VBAT_1 |
F17 | SWC BKLT |
F18 | N/A |
F19 | N/A |
F20 | CLOCK SPRING |
F21 | OCC SEN |
Fuse | Usage |
F22 | DLC |
F23 | SDM |
F24 | IGN_SW/ESCL |
F25 | PWR L-GATE MDL |
F26 | SEC FUSE-2 |
F27 | PWR SEAT CO-DR |
F28 | VBAT_8 |
F29 | DC-DC AT |
F30 | PWR L-GATE MDL |
F31 | OSRVM |
F32 | FRT HS PWR-1 |
F33 | VBAT_4 |
F34 | FRT HS PWR-2 |
F35 | AMPLIFIER |
F36 | ONSTAR (TCP) |
F37 | PWR SEAT DR |
F38 | DC-DC_400W |
F39 | SEC FUSE-1 |
F40 | HVAC_BLOWER |
Circuit Breaker | Usage |
CB1 | N/A |
CB2 | APO |
Relay | Usage |
K01 | i-RAP_ACC |
K02 | RUN |
K03 | LOGISTICS |
K04 | N/A |
K05 | N/A |
K06 | N/A |

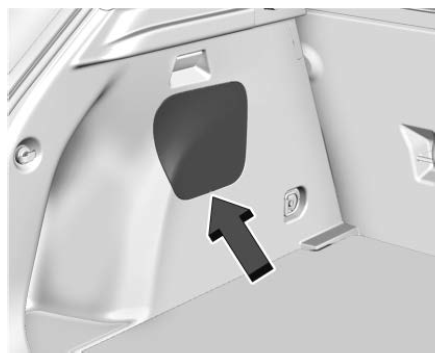

Rear Compartment Fuse BlockThe rear compartment fuse block is behind a cover on the driver side of the rear compartment. To access the fuses, remove the cover.
Fuse | Usage |
F01 | N/A |
F02 | RDCM ELEC |
Fuse | Usage |
F03 | N/A |
F04 | N/A |
F05 | DC/AC INVERTER |
F06 | N/A |
F07 | RDCM |
F08 | RR SEAT HEAT PWR1 |
F09 | N/A |
F10 | RR SEAT HEAT PWR2 |
F11 | N/A |
F12 | N/A |
F13 | N/A |
F14 | N/A |
F15 | N/A |
F16 | N/A |
F17 | N/A |
F18 | N/A |
F19 | N/A |
F20 | N/A |
F21 | N/A |
Circuit Breakers | Usage |
CB1 | N/A |
Relays | Usage |
K01 | N/A |
K02 | N/A |
K03 | N/A |
K04 | N/A |
K05 | N/A |
FAQs
The fuse box in the 2024 Buick Encore GX primarily serves to protect the vehicle’s electrical components from damage caused by electrical overloads or faults.
The fuse box is typically located in the engine compartment or beneath the dashboard on the driver’s side. Consult your owner’s manual for the precise location.
To access the fuse box, follow the instructions provided in your owner’s manual, as the location may vary depending on the trim and model.
The 2024 Buick Encore GX may use various fuse sizes, typically ranging from 5 to 30 amps. Refer to your owner’s manual or the fuse box cover for specific details.
Yes, you can replace fuses on your own. It’s a straightforward DIY task, but it’s essential to follow the correct procedures outlined in the owner’s manual.
A blown fuse is often identifiable by a visible break in the wire or a darkened appearance. A multimeter can also be used to test for continuity.
Fuses can blow due to electrical faults, circuit overloads, or malfunctions in connected components.
If a fuse keeps blowing, it’s crucial to consult your dealership or a qualified technician to diagnose and address the underlying issue causing the repeated fuse failures.
Some vehicles may come with spare fuses included. Refer to your owner’s manual or the fuse box cover to check if your 2024 Buick Encore GX has spare fuses.
No, it is not recommended to use a higher amp-rated fuse, as it may lead to electrical problems and damage. Always replace with the same amp-rated fuse.
The trip function on a blown fuse resets automatically when you replace the blown fuse with a new one of the correct rating.
When working with fuses, it’s essential to disconnect the vehicle’s battery and adhere to safety guidelines to avoid electrical shocks.
Adding extra fuses is not recommended, as it may overload the electrical system and cause damage.
Fuses protect various components, including headlights, power windows, radio, air conditioning, and more.
To prevent blown fuses, avoid overloading circuits, check for faulty components, and perform regular vehicle maintenance.
