Garmin Car Dash Cam Mini 2 Owner’s Manual

Garmin Car Dash Cam Mini 2 Owner’s Manual

How to Use Garmin Car Dash

1. Installation: Mount the Dash Cam: Using the adhesive or suction cup mount that comes with it, place the dash cam to the windshield of your car. Make sure the road is clearly visible to it.
2. Power Connection: Attach the power wire to the car’s power outlet (typically the cigarette lighter socket) and the dash cam. A built-in power cable may be present in some versions.
3. MicroSD Card: Put a suitable microSD card into the dash cam (these are typically not supplied). Regarding the types and capacities of supported cards, consult the manufacturer’s specifications.
4. Fundamental Function:
   1. Power On: The dash cam ought to turn on automatically when you turn on your car. If not, you may typically switch it on by pressing the power button.
   2. Recording: When the dash cam senses power, it usually begins recording automatically. Depending on your settings, it can capture video constantly or in short bursts.
   3. Saving Footage: To manually save a video clip, most dash cams provide a button. If you want to record an occurrence that you see, press this button.
   4. Watching Video: You may use the Garmin Drive app on your smartphone or take out the microSD card and plug it onto a computer to watch recorded video.
5. Configuration & Settings:
   1. Wi-Fi Connection: In order to connect to a smartphone app, some dash cams come equipped with built-in Wi-Fi. To configure the Wi-Fi connection, adhere to the manufacturer’s instructions.
   2. Date and Time: Since the dash cam frequently records this information on video, make sure the date and time settings are correct.
   3. Resolution: Adjust the parameters for the video resolution. Although they require more storage space, higher resolutions offer better image quality.
6. Enable loop recording so that, in the event that the storage becomes full, previous footage is overwritten. Usually, you can adjust the length of the loop.
   1. G-Sensor Sensitivity: Change the G-sensor sensitivity to control when an abrupt movement or impact causes the dash cam to record an incident video.
   2. Audio Recording: Depending on your tastes and the rules in your area, you can either enable or deactivate audio recording.
   3. Parking Mode: While the car is parked, adjust the motion or impact detection settings on your dash cam if it has that feature.
   4. Safety Features: Lane departure warnings and forward collision alerts are two examples of safety features included on some models. If these options are available, configure them.
   5. Upkeep: Frequently Examine the Dash Cam Make sure the dash cam is powered on, placed correctly, and operating on a regular basis. To keep clear video quality, clean the lens.
   6. MicroSD Card Management: To avoid data corruption, it’s a good idea to format the microSD card in the dash cam on a regular basis.
   7. Firmware Updates: To access new features and enhancements, check the manufacturer’s website for firmware updates for your dash cam. If necessary, upgrade it.

Installing a Memory Card

1. Insert the memory card into the slot
2. Press it in until it clicks.

Removing the Memory Card

NOTICE
Removing the memory card while the camera is turned on can result in a loss of data or damage to the camera.

1. Disconnect the power cable from the camera. 2 Wait for both status LEDs to turn off.
2. Press the memory card in until it clicks.
3. Release the card. The card ejects from the slot.

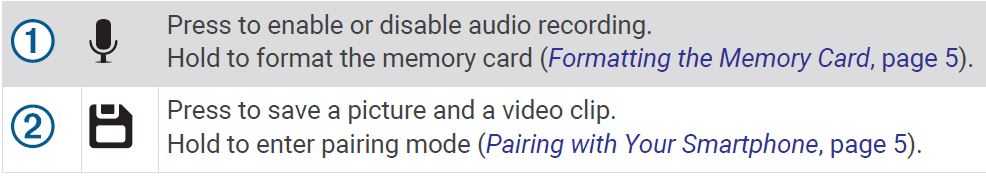

Device Overview

Installing the Device on Your Windshield

NOTICE
The adhesive mount is intended for a long-term installation and can be difficult to remove. You should carefully consider the mounting location before you install the mount.

Before you can install the adhesive mount onto your windshield, the ambient temperature must be from 21° to 38°C (from 70° to 100°F).

1. Clean the windshield using water or alcohol, and a lint-free cloth. The windshield must be free of dust, wax, oils, or coatings.
2. Remove the protective film from the mount adhesive.
3. Position the mount over the mounting location.
   TIP: The adhesive is extremely sticky. Avoid touching the adhesive to the windshield until the mount is properly positioned and aligned.
4. Press the mount firmly onto the windshield, and maintain pressure for 30 seconds. This helps to ensure the mount adhesive has proper contact with the windshield.

Connecting the Device to Vehicle Power

1. Plug the power cable into the USB port on the device.
2. Route the power cable to your vehicle power outlet. You can use either of the included cables to provide power to the camera. The longer, lightweight power cable is designed to be routed out of sight. To hide the 4 m (13 ft.) cable, route it behind the vehicle trim along the windshield, doorframe, or dash.
3. Plug the Garmin Dash Cam Mini 2 power cable into the included power adapter.
4. Plug the power adapter into a power outlet in your vehicle.
5. If necessary, turn on the vehicle ignition switch to provide power to the power outlet in your vehicle. The device turns on.

Turning Off the Device Manually
The camera does not have a power button. It turns on automatically when it receives power, and it turns off when it stops receiving power.
When the device is connected to an ignition-switched power outlet, it turns off automatically when you turn off the vehicle.
