Wheel and Tire Information
LOCATING THE TIRE LABEL
The tire label or safety certification label is on the driver-side B-pillar or the edge of the driver door. It contains information on the recommended front and rear tire inflation pressures. See
Locating the Safety Compliance Certification Labels.
DEPARTMENT OF TRANSPORTATION UNIFORM TIRE QUALITY GRADES
Tire Quality Grades apply to new pneumatic passenger car tires. The Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example Treadwear 200 Traction AA Temperature A. These Tire Quality Grades are determined by standards that the United States Department of Transportation has set.
Tire Quality Grades apply to new pneumatic passenger car tires. They do not apply to deep tread, winter-type snow tires,
space-saver or temporary use spare tires, light truck or LT type tires, tires with nominal rim diameters of 10 to 12 inches or limited production tires as defined in Title 49 Code of Federal Regulations Part 575.104 (c)(2).
U.S. Department of Transportation Tire Quality
grades: The U.S. Department of Transportation requires us to give you the following information about tire grades exactly as the government has written it.
Treadwear
The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear 1½ times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices, and differences in road characteristics and climate.
Traction AA A B C
WARNING: The traction grade assigned to this tire is based on straight-ahead braking traction tests, and does not include acceleration, cornering, hydroplaning or peak traction characteristics.
The traction grades, from highest to lowest are AA, A, B, and C. The grades represent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.
Temperature A B C
WARNING: The temperature grade for this tire is established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure.
The temperature grades are A
(the highest), B and C, represent the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. Grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Vehicle Safety Standard No. 139. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.
INFORMATION ON THE TIRE SIDEWALL
Both United States and Canada Federal regulations require tire manufacturers to place standardized information on the sidewall of all tires. This information identifies and describes the fundamental characteristics of the tire and also provides a U.S. DOT Tire Identification Number for safety standard certification and in case of a recall.
Information on P-Type Tires
P215/65R15 95H is an example of a tire size, load index and speed rating. The definitions of these items are listed below. (Note that the tire size, load index and speed rating for your vehicle may be different from this example.)
A. P: Indicates a tire, designated by the Tire and Rim Association, that may be used for service on cars, sport utility vehicles, minivans and light trucks.
Note: If your tire size does not begin with a letter this may mean it is designated by either the European Tire and Rim Technical Organization or the Japan Tire Manufacturing Association.
B. 215: Indicates the nominal width of the tire in millimetres from sidewall edge to sidewall edge. In general, the larger the number, the wider the tire.
C. 65: Indicates the aspect ratio which gives the tire’s ratio of height to width.
D. R: Indicates a radial type tire.
E. 15: Indicates the wheel or rim diameter in inches. If you change your wheel size, you will have to purchase new tires to match the new wheel diameter.
F 95: Indicates the tire’s load index. It is an index that relates to how much weight a tire can carry. You may find this information in your owner’s manual. If not, contact a local tire dealer.
Note: You may not find this information on all tires because it is not required by federal law.
G. H: Indicates the tire’s speed rating. The speed rating denotes the speed at which a tire is designed to be driven for extended periods of time under a standard condition of load and inflation pressure. The tires on your vehicle may operate at different conditions for load and inflation pressure. These speed ratings may need to be adjusted for the difference in conditions. The ratings range from 81 mph
(130 km/h) to 186 mph (299 km/h). These ratings are listed in the following chart.
Note: You may not find this information on all tires because it is not required by federal law.
|
Letter rating |
Speed rating |
|
M |
81 mph (130 km/h) |
|
N |
87 mph (140 km/h) |
|
Q |
99 mph (159 km/h) |
|
R |
106 mph (171 km/h) |
|
S |
112 mph (180 km/h) |
|
T |
118 mph (190 km/h) |
|
U |
124 mph (200 km/h) |
|
H |
130 mph (210 km/h) |
|
V |
149 mph (240 km/h) |
|
W |
168 mph (270 km/h) |
|
Y |
186 mph (299 km/h) |
Note: For tires with a maximum speed capability over 149 mph
(240 km/h), tire manufacturers sometimes use the letters ZR. For those with a maximum speed capability over 186 mph (299 km/h), tire manufacturers always use the letters ZR.
H. U.S. DOT Tire Identification Number (TIN): This begins with the letters DOT and indicates that the tire meets all federal standards. The next two numbers or letters are the plant code designating where it was manufactured, the next two are the tire size code and the last four numbers represent the week and year the tire was built. For example, the numbers 317 mean the 31st week of 1997. After 2000, the numbers go to four digits. For example, 2501 means the 25th week of 2001. The numbers in between are identification codes used for traceability. This information is used to contact customers if a tire defect requires a recall.
I. M+S or M/S: Mud and Snow, or AT: All Terrain, or
AS: All Season.
J. Tire Ply Composition and Material Used: Indicates the number of plies or the number of layers of rubber-coated fabric in the tire tread and sidewall. Tire manufacturers also must indicate the ply materials in the tire and the sidewall, which include steel, nylon, polyester, and others.
K. Maximum Load: Indicates the maximum load in kilograms and pounds that can be carried by the tire. See the Safety Compliance Certification Label (affixed to either the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver’s seating position), for the correct tire pressure for your vehicle.
L. Treadwear, Traction and Temperature Grades:
* Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half times as well on the government course as a tire graded 100.
Traction: The traction grades, from highest to lowest are AA, A, B, and C. The grades represent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.
* Temperature: The temperature grades are A (the highest), B and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
M. Maximum Inflation
Pressure: Indicates the tire manufacturers’ maximum permissible pressure or the pressure at which the maximum load can be carried by the tire. This pressure is normally higher than the vehicle manufacturer’s recommended cold inflation pressure which can be found on the Safety Compliance Certification Label (affixed to either the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver’s seating position), or Tire Label which is located on the B-Pillar or the edge of the driver’s door. The cold inflation pressure should never be set lower than the recommended pressure on the vehicle label.
The tire suppliers may have additional markings, notes or warnings such as standard load or radial tubeless.
Additional Information Contained on the Tire Sidewall for LT Type Tires
Note: Tire Quality Grades do not apply to this type of tire.
LT-type tires have some additional information beyond those of P-type tires; these differences are described below.
A. LT: Indicates a tire, designated by the Tire and Rim Association, that is intended for service on light trucks.
B. Load Range and Load Inflation Limits: Indicates the tire’s load-carrying capabilities and its inflation limits.
C. Maximum Load Dual lb (kg) at psi (kPa) cold: Indicates the maximum load and tire pressure when the tire is used as a dual, defined as four tires on the rear axle (a total of six or more tires on the vehicle).
D. Maximum Load Single lb
(kg) at psi (kPa) cold: Indicates the maximum load and tire pressure when the tire is used as a single, defined as two tires
(total) on the rear axle.
Information on T Type Tires
T145/80D16 is an example of a tire size.
Note: The temporary tire size for your vehicle may be different from this example. Tire Quality Grades do not apply to this type of tire.
T-type tires have some additional information beyond those of P-type tires; these differences are described below:
A. T: Indicates a type of tire, designated by the Tire and Rim Association, that is intended for temporary service on cars, sport utility vehicles, minivans and light trucks.
B. 145: Indicates the nominal width of the tire in millimetres from sidewall edge to sidewall edge. In general, the larger the number, the wider the tire.
C. 80: Indicates the aspect ratio which gives the tire’s ratio of height to width. Numbers of 70 or lower indicate a short sidewall.
D. D: Indicates a diagonal type tire. R: Indicates a radial type tire.
E. 16: Indicates the wheel or rim diameter in inches. If you change your wheel size, you will have to purchase new tires to match the new wheel diameter.
GLOSSARY OF TIRE TERMINOLOGY
* Tire label: A label showing the original equipment tire sizes, recommended inflation pressure and the maximum weight the vehicle can carry.
* Tire Identification Number (TIN): A number on the sidewall of each tire providing information about the tire brand and manufacturing plant, tire size and date of manufacture. Also referred to as DOT code.
* Inflation pressure: A measure of the amount of air in a tire.
* Standard load: A class of P-metric or Metric tires designed to carry a maximum load at set pressure. For example: For
P-metric tires 35 psi (2.4 bar) and for Metric tires 36 psi (2.5 bar). Increasing the inflation pressure beyond this pressure will not increase the tire’s load-carrying capability.
* Extra load: A class of P-metric or Metric tires designed to carry a heavier maximum load at 42 psi (2.9 bar). Increasing the inflation pressure beyond this pressure will not increase the tire’s load-carrying capability.
* kPa: Kilopascal, a metric unit of air pressure.
* PSI: Pounds per square inch, a standard unit of air pressure.
* Cold tire pressure: The tire pressure when the vehicle has been stationary and out of direct sunlight for an hour or more and prior to the vehicle being driven for 1 mi (1.6 km).
* Recommended inflation pressure: The cold inflation pressure found on the Safety Compliance Certification Label (affixed to either the door hinge pillar, door-latch post, or the door edge that meets the door-latch post, next to the driver’s seating position), or Tire Label located on the B-Pillar or the edge of the driver door.
* B-pillar: The structural member at the side of the vehicle behind the front door.
* Bead area of the tire: Area of the tire next to the rim.
* Sidewall of the tire: Area between the bead area and the tread.
* Tread area of the tire: Area of the perimeter of the tire that contacts the road when mounted on the vehicle.
* Rim: The metal support (wheel) for a tire or a tire and tube assembly upon which the tire beads are seated.
TIRE REPLACEMENT REQUIREMENTS
Your vehicle is equipped with tires designed to provide a safe ride and handling capability.
WARNING: Only use replacement tires and wheels that are the same size, load index, speed rating, and type as those originally provided for your vehicle. The recommended tire and wheel sizes can be found on the Tire Label on the driver side door frame or the edge of the driver door. If this information is not found in those locations, or for additional options, contact your authorized dealer. Use of any tire or wheel not recommended could affect the safety and performance of your vehicle, which could result in an increased risk of loss of vehicle control, vehicle rollover, personal injury and death.
WARNING: To reduce the risk of serious injury, when mounting replacement tires and wheels, you should not exceed the maximum pressure indicated on the sidewall of the tire to set the beads without the additional precautions listed below. If the beads do not seat at the maximum pressure indicated, re-lubricate and try again.
WARNING: For a mounting pressure more than 20 psi
(1.38 bar) greater than the maximum pressure, a Ford dealer or other tire service professional should do the mounting.
WARNING: Always inflate steel carcass tires with a remote air fill with the person inflating standing at a minimum of 12 ft (3.66 m) away from the wheel and tire assembly.
WARNING: Only use the specified jacking points. If you use any other locations you could damage vehicle components, such as brake lines.
WARNING: When inflating the tire for mounting pressures up to 20 psi (1.38 bar) greater than the maximum pressure on the tire sidewall, the following precautions must be taken to protect the person mounting the tire:
- Make sure that you have the correct tire and wheel size.
- Lubricate the tire bead and wheel bead seat area again.
- Stand at a minimum of 12 ft (3.66 m) away from the wheel and tire assembly.
- Use both eye and ear protection.
Important: Remember to replace the wheel valve stems when the road tires are replaced on your vehicle.
It is recommended that the two front tires or two rear tires generally be replaced as a pair if the worn tires still have usable depth.
To avoid potential All-Wheel Drive (AWD) malfunction or (AWD) system damage, it is recommended to replace all four tires rather than mixing significantly worn tires with new tires.
The tire pressure sensors mounted in the wheels (originally installed on your vehicle) are not designed to be used in aftermarket wheels.
The use of wheels or tires not recommended may affect the operation of your tire pressure monitoring system.
If the tire pressure monitoring system indicator is flashing, your system is malfunctioning. Your replacement tire might be incompatible with your tire pressure monitoring system, or some component of the system may be damaged.
Age
WARNING: Tires degrade over time depending on many factors such as weather, storage conditions, and conditions of use (load, speed, inflation pressure) the tires experience throughout their lives.
In general, tires should be replaced after six years regardless of tread wear. However, heat caused by hot climates or frequent high-loading conditions can accelerate the aging process and may require tires to be replaced more frequently.
You should replace your spare tire when you replace the road tires or after six years due to aging even if it has not been used.

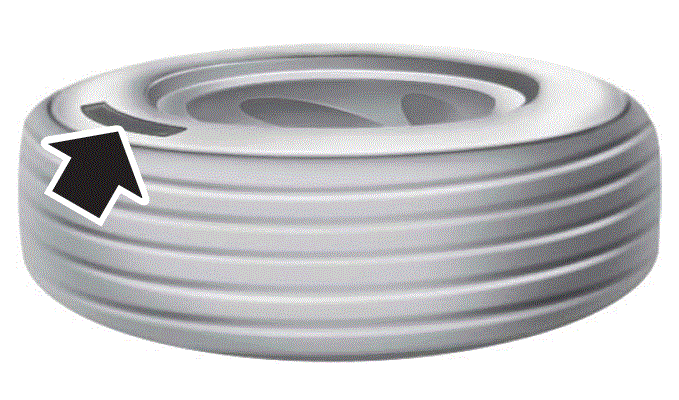

U.S. DOT Tire Identification Number
Both United States and Canada Federal regulations require tire manufacturers to place standardized information on the sidewall of all tires. This information identifies and describes the fundamental characteristics of the tire and also provides a U.S. DOT Tire Identification Number for safety standard certification and in case of a recall.
This begins with the letters DOT and indicates that the tire meets all federal standards. The next two numbers or letters are the plant code designating where it was manufactured, the next two are the tire size code and the last four numbers represent the week and year the tire was built. For example, the numbers 317 mean the 31st week of 1997. After 2000, the numbers go to four digits. For example, 2501 means the 25th week of 2001. The numbers in between are identification codes used for traceability. This information is used to contact customers if a tire defect requires a recall.
FORD Edge USING SNOW CHAINS
WARNING: Do not exceed 30 mph (50 km/h). Failure to follow this instruction could result in the loss of control of your vehicle, personal injury or death.
WARNING: Do not use snow chains on snow-free roads.
WARNING: Only fit snow chains to specified tires.
WARNING: If your vehicle is fitted with wheel trims, remove them before fitting snow chains.
WARNING: Wheels and tires must be the same size, load index and speed rating as those originally fitted on the vehicle. Use of any other tire or wheel can affect the safety and performance of your vehicle. Additionally, the use of non-recommended tires and wheels can cause steering, suspension, axle, transfer case or power transfer unit failure.
Follow the recommended tire inflation pressures found on the Safety Compliance Certification label, or the Tire Label on the B-Pillar or the edge of the driver door. Failure to follow this instruction could result in loss of vehicle control, vehicle rollover, or personal injury or death.
WARNING: If you are driving in slippery conditions that require tire chains or cables, then it is critical that you drive cautiously. Keep speeds down, allow for longer stopping distances and avoid aggressive steering to reduce the chances of a loss of vehicle control which can lead to serious injury or death. If the rear end of your vehicle slides while cornering, steer in the direction of the slide until you regain control of your vehicle.
Only use snow chains on the front wheels. Install snow chains in pairs. Do not use self-tensioning snow chains.
Only use snow chains on the following specified tire sizes:
- 235/60R18 all-season tires.
- Only use ultra-low profile snow chains that are 10 mm or less.
We recommend you use steel wheels of the same size and specification if snow chains are required because chains may chip aluminium wheels.
Follow these guidelines when using snow tires and traction devices:
- If possible, avoid fully loading your vehicle.
- Purchase snow chains from a manufacturer that clearly labels body to tire dimension restrictions.
- When driving with snow chains do not exceed 30 mph (50 km/h) or the maximum speed recommended by the chain manufacturer, whichever is less.
- Drive cautiously. If you hear the snow chains rub or bang against the vehicle, stop and tighten them. If this does not work, remove the snow chains to prevent vehicle damage.
- Remove the snow chains when they are no longer needed. Do not use snow chains on dry roads.
- If a temporary spare wheel is mounted on your vehicle, do not use snow chains on the axle with the temporary spare wheel.
- Use snow chains that fit against the sidewall of the tire to prevent the chains from touching the wheel rims or suspension.
If you have any questions regarding snow tires or snow chains, please contact your authorized dealer.
CHECKING THE TIRE
PRESSURES
Safe operation of your vehicle requires that your tires are properly inflated. Every day before you drive, check your tires.
At least once a month and before long trips, inspect each tire and check the tire pressure with a tire gauge. Inflate all tires to the recommended inflation pressure.
INFLATING THE TIRES FORD Edge 2024
WARNING: Under-inflation is the most common cause of tire failures and may result in severe tire cracking, tread separation or blowout, with the unexpected loss of vehicle control and increased risk of injury. Under-inflation increases sidewall flexing and rolling resistance, resulting in heat buildup and internal damage to the tire. It also may result in unnecessary tire stress, irregular wear, loss of vehicle control and accidents. A tire can lose up to half of its air pressure and not appear to be flat!
WARNING: Do not use the tire pressure displayed in the information display as a tire pressure gauge. Failure to follow this instruction could result in personal injury or death.
Use the recommended cold inflation pressure for optimum tire performance and wear.
Under-inflation or over-inflation may cause uneven treadwear patterns.
Inflate your tires to the recommended inflation pressure even if it is less than the maximum inflation pressure information found on the tire. You can find the tire label with the recommended tire inflation pressure next to the tire size on the B-Pillar or the edge of the driver door.
The recommended tire inflation pressure is also found on the Safety Compliance Certification Label, affixed to either the door hinge pillar, door-latch post, or the door edge that meets the door-latch on the B-pillar, or on the edge of the driver door.
Failure to follow the tire pressure recommendations can cause uneven treadwear patterns and adversely affect the way your vehicle handles.
FAQs
The recommended tyre pressure for the 2024 Ford Edge varies by trim level and tyre size.
Run-flat tyres may be available as an option for the 2024 Ford Edge, depending on the trim level and package selected.
Installing larger wheels on the 2024 Ford Edge is feasible, but you must make sure they work with the vehicle’s specs and that the tyre size ratios are correct to prevent performance and safety issues.
Depending on the trim level and options selected, the availability of a spare tyre may change. A spare tyre may be included in some 2024 Ford Edge models, while run-flat tyres or a tyre repair kit may be included in others.
To guarantee uniform tread wear and extend tyre life for the 2024 Ford Edge, Ford advises rotating tyres every 5,000 to 7,500 miles.
Snow tyres are a suggested choice for drivers of the 2024 Ford Edge who live in areas with severe winters, since they can improve handling and traction in snowy or icy weather.
Although aftermarket wheel accessories, like as wheel spacers or adapters, can be used, it’s essential to guarantee compatibility and quality to preserve the 2024 Ford Edge’s performance and safety.
The 2024 Ford Edge wheel bolt pattern differs based on the particular model and trim level. Although 5×114.3 mm and 5×108 mm are common bolt patterns, it’s important to confirm the precise pattern for your car.
For some 2024 Ford Edge trim levels, Ford may provide performance wheel and tyre kits that will improve handling and appeal to enthusiasts.
For 2024 Ford Edge owners who value year-round traction and performance, switching to all-season tyres can offer versatility for fluctuating weather conditions.
In order to guarantee safety and avoid damaging the car, it is imperative that you adhere to these instructions and use the appropriate tools.
Although the fundamental wheel alignment standards are applicable, specific modifications might be required depending on the 2024 Ford Edge’s trim level and suspension configuration.
For enthusiasts looking for better performance on the road or track, upgrading to performance brakes and tyres can improve the 2024 Ford Edge’s stopping power, cornering abilities, and overall driving characteristics.
Tyre chains can offer more traction during harsh winter weather, but in order to protect the vehicle’s tyres and suspension parts, compatibility and correct installation are crucial.
Ford may suggest certain tyre manufacturers or models that satisfy the performance and safety requirements for the 2024 Ford Edge, even if the company does not officially support any one tyre brand.
