2011-2023 Harley Davidson Trike Instruments Guide
The Harley Davidson Trike Instruments, which debuted in 2011 and were available until 2023, represent an incredible advancement in the three-wheeled motorbike industry. These cutting-edge tools give motorcyclists a thorough and user-friendly dashboard by fusing traditional Harley Davidson design elements with contemporary technology. The Trike Instruments enhance riders’ overall riding experiences by providing them with important information at their fingertips and putting a strong emphasis on safety, convenience, and style. These tools are made to make every trip on your Harley Davidson Trike a memorable and joyful adventure, regardless of whether you are an experienced rider or a newbie to the world of trikes.
INSTRUMENTS
Speedometer
Travel at speeds appropriate for road and conditions and never travel faster than posted speed limit. Excessive speed can cause loss of vehicle control, which could result in death or serious injury. (00008a)
See Figure 7. The speedometer registers miles per hour of forward speed. The speedometer has a single display for the following selectable functions:
- Odometer
- Trip odometers A and B
- Fuel range function
- See Figure 7. Pressing the function switch with the ignition switch in any position will activate the odometer reading. Mileage may be checked without unlocking ignition switch. Press and release function switch once to view odometer.
- To check mileage on trip odometers, the ignition switch must be in the ACC or IGNITION position. Press and release the function switch until the desired trip odometer reading is displayed. An A or B in the upper left of the display window identifies trip odometers.
- To reset or zero trip odometers, have desired (A or B) odometer in display window. Press function switch and hold switch for 2-3 seconds. The trip odometer will be reset to zero.
- Repeat the previous step if you wish to zero both trip odometers.
Tachometer
NOTICE
See OPERATING RECOMMENDATIONS section. Do not operate the engine above maximum safe RPM as shown under OPERATION (red zone on tachometer). Lower the RPM by upshifting to a higher gear or reducing the amount of throttle. Failure to lower RPM may cause equipment damage. (00159a)
See Figure 6. The tachometer measures the engine speed in revolutions per minute (RPM).
Tip Indicator Lamp
If tip occurs, check all controls for proper operation. Restricted control movement can adversely affect the performance of the brakes, clutch or ability to shift, which could result in loss of vehicle control and death or serious injury. (00350a)
Should motorcycle be tipped over, the word “tip” will appear in the odometer window. Engine will not start until reset. To reset, cycle ignition/headlamp key switch ON-OFF-ON.
Fuel Gauge
The fuel gauge indicates the approximate amount of fuel in the fuel tank(s) and is located to left of the speedometer or on the left front panel of the fairing.
Oil Pressure Gauge
The oil pressure gauge indicates engine oil pressure and is found on the front panel of the fairing. Engine oil pressure will normally vary from 5 psi (34 kN/m2) at idle speed to 30-38 PSI (207-262 kN/m2) at 2000 RPM when engine is at normal operating temperature of 230° F (110° C).
Voltmeter
The voltmeter indicates electrical system voltage and is found on the front panel of the fairing. With the engine running above 1500 RPM, the voltmeter should register 13-14.5 volts with battery at full charge.
Air Temperature Gauge
The air temperature gauge indicates the ambient air temperature in degrees Fahrenheit. This gauge is found on the front panel of the fairing.
Fuel Range Function
The fuel range function shows the approximate mileage avail-able with the amount of fuel left in the fuel tank.
- With the ignition switch in the ACC or IGNITION position, press function switch until fuel range function is displayed, as indicated by the letter ‘r’ in the left side of the odometer display. The calculated remaining distance (miles or kilo-meters) to empty is displayed, based on the amount of fuel in tank. Range can be accessed at any time using the function switch.
- When the low fuel warning lamp illuminates, the range feature will automatically be displayed in the odometer unless this automatic pop-up feature is disabled by a press and hold of the function switch while in range display mode. Automatic range pop-up feature will show that it is disabled by blinking twice. Likewise, automatic range popup can be reactivated by a press and hold of the function switch. Range will blink once when the automatic pop-up feature is re-enabled.
NOTES
- When the low fuel warning lamp turns on, there is approximately 1.00 gallon (3.79 liters) of fuel remaining in the tank. Refuel as soon as possible.
- The range display is only updated when the vehicle is moving.
- After the range calculation reaches 10 miles (16 kilo-meters) remaining, the range display will display “r Lo” to indicate that the vehicle will shortly run out of fuel.
- Resetting the low fuel warning lamp and range requires an ignition cycle change.
Figure 6. Instruments (Typical)
- Speedometer
- Tachometer
- Voltmeter
- Oil pressure
- Air temperature
- Fuel level
- Function button
INSTRUMENT LAMPS
Engine Check Lamp
See Figure 7.The engine check lamp is located near the lower left side of the speedometer face. Its purpose is to indicate whether or not the engine/engine management system is operating normally. The engine lamp color is amber.
The engine lamp normally comes on when the ignition is first turned on and remains on for approximately 4 seconds, as the engine management system runs a series of self-diagnostics.
If the engine lamp comes on at any other time, see a Harley-Davidson dealer.
Low Fuel Lamp
See Figure 7. The low fuel lamp is located in the speedometer face, lower center by check engine lamp. The low fuel lamp indicates low fuel level in the tank. Refer to Table 8. Refill the tank as soon as possible. The low fuel lamp color is amber.
If the low fuel lamp remains lit after adding fuel or filling the fuel tank, see your Harley-Davidson dealer.
Battery Discharge Lamp
See Figure 7. The red battery charging lamp indicates either overcharging or undercharging of the battery. Refer to MAIN-TENANCE AND LUBRICATION, Battery: General.
Cruise Control Lamps
See Figure 7. A green lamp on the tachometer face indicates the cruise control is SET or NOT SET. An orange lamp on the cruise control switch indicates the cruise control is ON or OFF. Refer to CONTROLS AND INDICATORS, Cruise Control Operation.
Sixth Gear Lamp
See Figure 7. The amber sixth gear lamp on the speedometer face indicates when the transmission is in sixth gear.
Security System Lamp
See Figure 7. The red security system lamp on the speedo-meter face indicates when the security system is armed. Refer to HANDS-FREE SECURITY MODULE, Harley-Davidson Smart Security System.
If the security system lamp remains lit after the security system is disarmed, see your Harley-Davidson dealer.
Reverse Enable Lamp
The reverse enable lamp is located with the reverse controls on the left handlebar. This yellow lamp is lit when reverse operation is enabled. See CONTROLS AND INDICATORS, Reverse Operation.

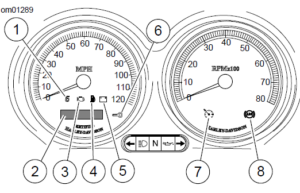

Figure 7. Indicator Lamps
- Sixth gear lamp
- Odometer/trip odometer
- Engine check lamp
- Low fuel warning lamp
- Battery discharge lamp
- Security system lamp
- Cruise lamp
- ABS lamp (not used)
FAQs
The many gauges and displays on the dashboard of Harley Davidson Trike models are referred to as “Harley Davidson Trike instruments.” They offer crucial details regarding the functionality and condition of the motorcycle.
Instruments including speedometers, tachometers, fuel gauges, temperature gauges, and indicator lights are frequently found on Harley Davidson trikes.
Press and hold the reset button on the instrument panel while the trip meter is visible to reset the trip meter on your Harley Davidson trike.
A problem with the motorcycle’s engine or related systems may be indicated by the “Check Engine” light on the instrument panel. It must be examined by an experienced technician.
As the process may differ by model and year, consult your owner’s manual to convert a Harley Davidson Trike’s speedometer from miles to kilometers.
Check the connections and wiring first if the fuel gauge isn’t functioning properly. Consult a Harley Davidson service facility for an accurate diagnosis and repair if the problem continues.
By model and year, different tire pressures may be advised. The best place to look for the recommended tire pressure is in your owner’s manual or on the motorcycle itself.
Follow the calibration instructions in the owner’s manual to calibrate your Harley Davidson Trike’s compass display. Usually, this entails maneuvering the motorcycle in a particular way.
The oil pressure indicator measures the engine’s oil pressure. It’s critical to stop the motorcycle right away and inspect the oil level and condition if the indicator shows low oil pressure.
The instrument panel lights can frequently be replaced with LED bulbs for better visibility. Make sure the LEDs you select are compatible with the instrument panel on your trike.
To reset the instrument service reminder on your Harley Davidson Trike, refer to the owner’s manual for your particular model
The battery voltage gauge on a motorcycle shows the battery’s current voltage. It aids in keeping track of the battery’s condition and charging setup.
Model and year can affect how to change the brightness of the instrument panel display. For further information, consult your owner’s handbook.
It is advised to have your motorcycle inspected and fixed by a certified Harley Davidson mechanic if the instruments are not working properly. Electrical problems can be difficult to identify and resolve.
Yes, you may frequently modify and add aftermarket extras to your Trike to change the way the instruments look. To ensure operation and safety, be sure to adhere to Harley Davidson’s instructions and suggestions.
