2023 Honda Odyssey Light Bulbs

The light bulbs in the 2023 Honda Odyssey shine a bright light forward, which not only makes it easier to see but also makes the car look better. These carefully made light sources are important parts that add to safety, usefulness, and the driving experience as a whole. The Odyssey’s lighting system uses many different kinds of bulbs, like halogen, LED, and maybe even HID lamps, each of which is carefully made for a specific job. From the bright headlights that light up the road ahead to the soft glow of the inner and exterior bulbs, each light has its own job to do to make sure people can see and talk clearly on the road. Whether it’s the bright LEDs in the headlights that make the car easier to see or the fog lights that cut through fog, the Odyssey’s light bulbs work together to make a coherent and effective lighting system. From the practicality of the brake lights to the elegance of the internal lighting, each bulb adds to the usefulness and beauty of the car. In a time when lighting technology is a mix of performance and new ideas, the light bulbs in the 2023 Honda Odyssey are both safe and stylish. As they shine brightly, they show that Honda is committed to making a car that not only moves you, but also guides, lights up, and keeps you interested in the trip ahead.

Replacing Light Bulbs

Headlights
Headlights are LED type. Have an authorized Honda dealer inspect and replace the light assembly.

The headlight aim is set by the factory, and does not need to be adjusted. However, if you regularly carry heavy items in the cargo area or tow a trailer, have the aiming readjusted at a dealer or by a qualified technician.

Fog Lights
Fog lights are LED type. Have an authorized Honda dealer inspect and replace the light assembly.

Parking/Daytime Running Lights
Parking/daytime running lights are LED type. Have an authorized Honda dealer inspect and replace the light assembly.

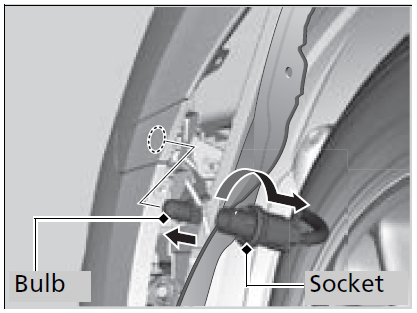

Front Turn Signal Light Bulbs

When replacing, use the following bulbs.
Front Turn Signal Light: 28/8 W (Amber)

1. Turn the steering wheel all the way to the opposite side from the light being replaced.
   Passenger side: Turn the steering wheel to the left.
   Driver side: Turn the steering wheel to the right.

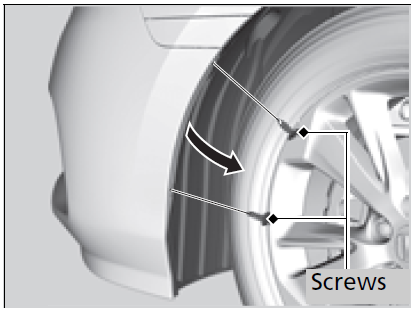

2. Remove the screws, and pull the inner fender back.
3. Rotate the socket counter-clockwise and remove it.
4. Remove the old bulb and insert a new bulb.

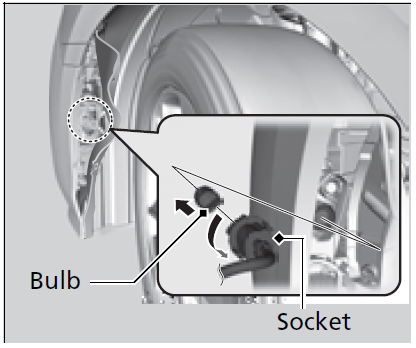

Front Side Marker Light Bulbs

When replacing, use the following bulb.

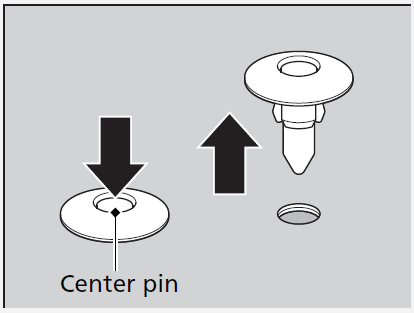

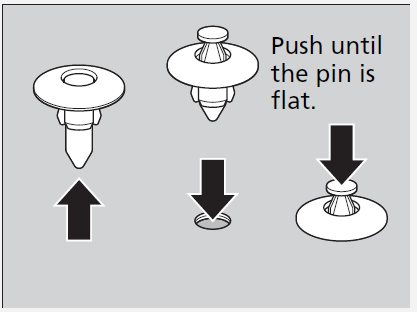

Press down the center pin until it clicks to unlock it. Push the center pin back to lock the clip. Then, insert the clip into the hole and press on the center pin until it is flat.

When replacing, use the following bulb.

Front Side Marker Light: 3 CP

1. Turn the steering wheel all the way to the opposite side from the light being replaced.
   Passenger side: Turn the steering wheel to the left.
   Driver side: Turn the steering wheel to the right.

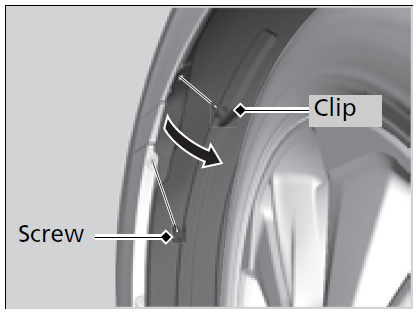

2. Remove the holding clip and screw, and pull the inner fender back.
3. Rotate the socket counter-clockwise and remove it.
4. Remove the old bulb and insert a new bulb.

Side Turn Signal/Emergency Indicator Lights

Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect and replace the light assembly.

Brake, Rear Turn Signal Light Bulbs, and Rear Side Marker/Taillights

Rear side marker/taillights are LED type. Have an authorized Honda dealer inspect and replace the light assembly.

When replacing, use the following bulbs.

• Brake Light: 21 W
• Rear Turn Signal Light: 21 W
• Rear Side Marker/Taillight: LED

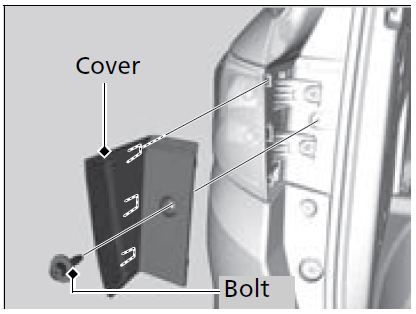

1. Use a Phillips-head screwdriver to remove the bolt.
2. Pull the cover out of the rear pillar.

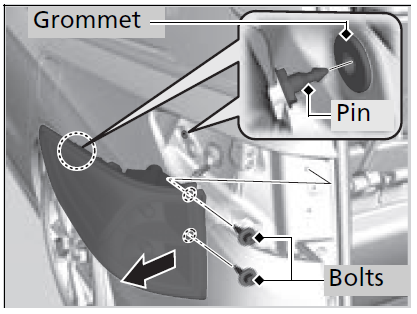

3. Use a Phillips-head screwdriver to remove the bolts.
4. Pull on the light assembly to rotate about the grommet and remove from the rear pillar.

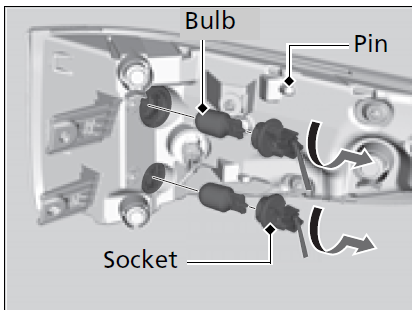

5. Turn the socket counter-clockwise and remove it. Remove the old bulb.
6. Insert a new bulb and turn the socket clockwise.
7. Slide the light assembly onto the guide on the body.
8. Align the pin with the body grommet, then push in until it fully seats.

Back-Up Light Bulbs/Taillights

Taillights are LED type. Have an authorized Honda dealer inspect and replace the light assembly.

When replacing, use the following bulbs.

• Back-Up Light: 21 W
• Taillight: LED

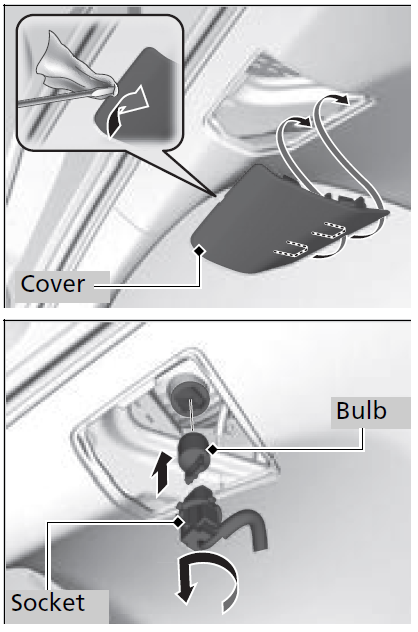

1. Remove the cover by prying on the edge of the cover using a flat-tip screwdriver.
   • Wrap the flat-tip screwdriver with a cloth to prevent scratches.
2. Turn the socket counter-clockwise and remove it.
3. Remove the old bulb and insert a new bulb.

Rear License Plate Light
Rear license plate light is LED type. Have an authorized Honda dealer inspect and replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Honda dealer inspect and replace the light assembly.
