Fuses
- [A]: Blade type
- [B]: Cartridge type
- [C]: Multitype
A vehicle’s electrical system is protected from electrical overload damage by fuses. This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, and the other in the engine compartment. If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.

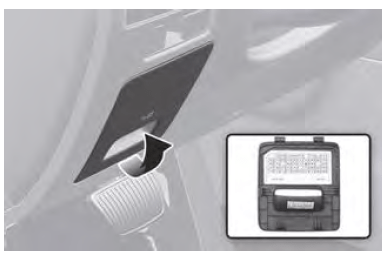

Instrument Panel Fuse Replacement
- Turn the vehicle off.
- Turn all other switches off.
- Open the fuse panel cover.
- Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
- Pull the suspected fuse straight out. Use the removal tool (1) provided in the engine compartment fuse panel.
- Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).
- Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse. If the headlights or other electrical components do not work and the fuses are undamaged, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced with the same rating.
Engine Compartment Panel Fuse Replacement

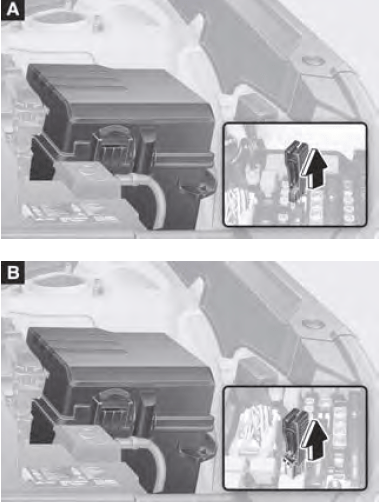

Blade fuse/Cartridge fuse
- [A] : Blade type
- [B] : Cartridge type
- Turn the vehicle off.
- Turn all other switches off.
- Remove the fuse panel cover by pressing the tap and pulling up.
- Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
- Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
NOTICE
After checking the fuse panel in the engine compartment, securely install the fuse panel cover. You may hear a clicking sound if the cover is securely latched. If it is not securely latched, electrical failure
may occur from water contact.

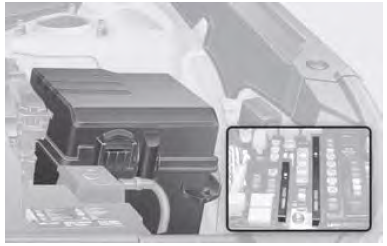

Multi fuse
If the multi fuse is blown, it must be removed as follows:
- Turn off the engine.
- Disconnect the negative battery cable.
- Remove the fuse panel cover by pressing the tab and pulling it up.
- Remove the nuts shown in the picture above.
- Replace the fuse with a new one of the same rating.
- Reinstall in the reverse order of removal.
Information
If the multi fuse is blown, consult an authorized HYUNDAI dealer.
Fuse/Relay Panel Description
Instrument panel fuse panel
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

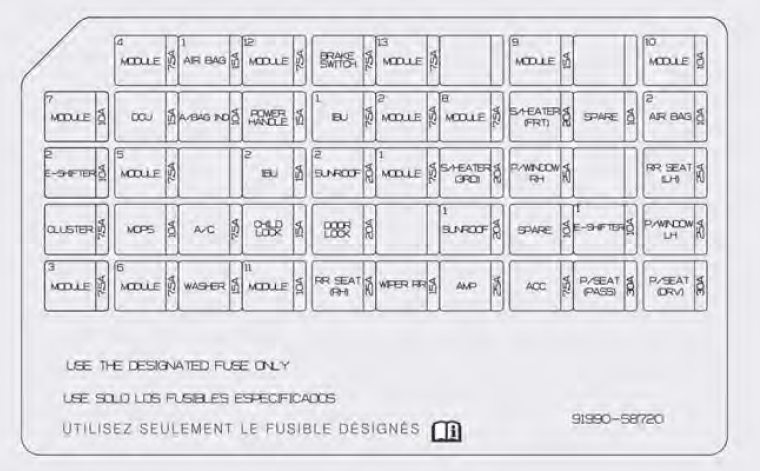

Instrument panel fuse panel
| Fuse Name | Fuse Rating | Protected Component |
|
MODULE 4 |
7.5A |
Passenger Abag Indicator Seat Belt Indicator
Data Link Connector Stop Lamp Switch Driver Door Module |
| AIR BAG1 | 15A | SRS Control Module
Passenger Occupant Detection Sensor |
| BRAKE SWITCH | 7.5A | IBU
Stop Lamp Switch |
|
MODULE 9 |
15A |
Low DC-DC Converter (Audio) A/V & Navigation Head Unit Front A/C Control Module MOOD LAMP
CLUSTER Rear A/C Control Module HEAD UP DISPLAY |
|
MODULE 10 |
10A |
Front Console Switch Front Wireless Charger
Blind-Spot Collision Warning Unit LH/RH FRT-Spot Collision Warning Unit LH/RH |
| AIR BAG IND | 10A | Instrument Cluster |
|
MODULE 2 |
7.5A |
3RD Seat Folding Control Module AC Inverter Outlet
Inverter Unit |
|
MODULE 8 |
7.5A |
Center Fascia Keyboard (Hazard Switch) Key Solenoid
RAIN SENSORREAR OCCUPANT ALERT (ROA) Driver IMS Control Module Driver Door Module Driver/Passenger Power Side view Mirror Driver/Passenger Side view Mirror Power Tail Gate Unit |
| S/HEATER FRT | 20A | 1ST Air Ventilation Control Module 1ST Seat Warmer Control Module |
| AIR BAG 2 | 10A | SRS Control Module |
| E-SHIFTER 2 | 10A | Electronic ATM Shift Button Switch (SBW) |
| Fuse Name | Fuse Rating | Protected Component |
|
MODULE 5 |
7.5A |
IBU
Crash Pad Switch Front Console Switch Lane Keeping Assist Unit (Line) ADAS-PARKING UNIT ADAS-DRIVING UNIT Smart Cruise Control Radar AWD ECM |
|
IBU 2 |
15A |
IBU
Ignition Switch Driver/Passenger DIGITAL Key Outside Handle |
| SUNROOF 2 | 20A | Panoramic Sunroof |
| MODULE 1 | 7.5A | IBU |
| S/HEATER 3RD | 20A | 3RD Seat LH/RH Warmer Control Module |
| P/WINDOW RH | 25A | Passenger Safety Power Window Module Rear Power Window Switch RH |
|
RR SEAT LH |
25A |
2ND Air Ventilation Seat LH Control Module 2ND Seat LH Warmer
Control Module 2ND Seat LH Reclining Folding Actuator |
| CLUSER | 7.5A | Instrument Cluster Head Up Display |
| MDPS | 10A | MDPS Unit |
|
A/C |
7.5A |
E/R Junction Block (Blower FRT Relay, Blower RR Relay PTC HEATER 1/2 RELAY
Front A/C Control Module |
| CHILD LOCK | 15A | ICM Relay Box (Child Lock/Unlock Relay) |
|
DOOR LOCK |
20A |
Door Lock Relay Door Unlock Relay Liftgate Relay
Two Turn Unlock Relay |
| SUNROOF 1 | 20A | Sunroof |
| E-SHIFTER 1 | 10A | Electronic ATM Shift Button Switch (SBW) |
| P/WINDOW LH | 25A | Driver Safety Power Window Module Rear Power Window Switch LH |
| Fuse Name | Fuse Rating | Protected Component |
| MODULE 3 | 7.5A | IBU |
|
MODULE 6 |
7.5A |
A/V & Navigation Head Unit Electro Chromic Mirror
Low DC-DC Converter (Audio/AMP) Front Wireless Charger Front/Rear A/C Control Module Center Facia Keyboard 1ST Air Ventilation Seat Control Module1ST Seat Warmer Control Module2 ND Air Ventilation Seat LH/RH Control Module 2ND Seat LH/RH Warmer Control Module |
| WASHER | 15A | Multifunction Switch |
|
RR SEAT RH |
25A |
2ND Air Ventilation Seat Control Module2ND Seat RH Warmer Control Module2ND Seat RH Reclining Folding Actuator |
| RR WIPER | 15A | Rear Wiper Relay Rear Wiper Motor |
| AMP | 25A | AMP
Low DC-DC Converter (AMP) |
|
ACC |
7.5A |
A/V & Navigation Head Unit AMP Front Wireless Charger Center Fascia Keyboard ADAS-PARKING UNITIBU |
| P/SEAT PASS | 30A | Passenger Seat Manual Switch |
| P/SEAT DRV | 30A | Driver IMS Control Module Driver Seat Manual Switch |
| MODULE 12 | 7.5A | ADAS-PARKING UNITHEAD UP DISPLAY |
| MODULE 13 | 7.5A | MOOD LAMP |
| MODULE 11 | 10A | 2ND CONSOLE SWITCH |
| MODULE 7 | 10A | Head Lamp RH Head Lamp LH |
| DCU | DCU UNIT |
Engine compartment fuse panel (Engine room junction block)
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

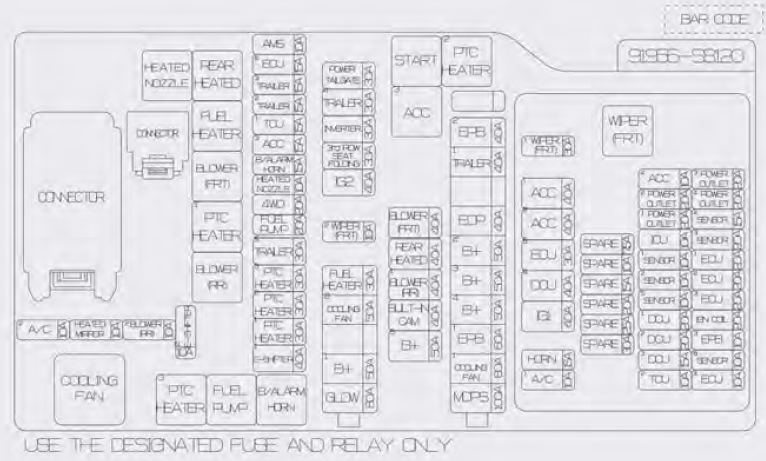

Engine compartment fuse panel
| Fuse Name | Fuse Rating | Protected Component | |
|
MULTI FUSE-1 |
MDPS | 100A | MDPS Unit |
| COOLING FAN 1 | 80A | Cooling Fan Relay (600W) | |
| EPB 1 | 60A | EPB Control Module | |
| B+4 | 50A | ICU Junction Block | |
| B+3 | 50A | ICU Junction Block | |
| B+2 | 50A | ICU Junction Block (IPS 2,8,9,10,11,13) | |
| EOP | 40A | Electronic Oil Pump Module | |
| – | 40A | Not Used | |
| TRAILER 1 | 40A | Trailer Lamp | |
| EPB 2 | 40A | EPB Control Module | |
|
MULTI FUSE-2 |
B+1 | 50A | ICU Junction Block((IPS1,3,4,5,6,7), Long/Short Term Load Latch Relay) |
| – | 50A | Not Used | |
| COOLING FAN 2 | 50A | Cooling Fan Relay (400W) | |
| FUEL HEATER | 30A | Fuel Heater Relay | |
|
FUSE |
B+5 | 50A | ICU Junction Block(DOOR LOCK) |
| BLOWER (FRT) | 40A | Blower Relay (FRT) | |
| BLOWER (RR 1) | 40A | Blower Relay (RR) | |
| REAR HEATED | 40A | Rear HTD Relay | |
| IG2 | 40A | Start Relay, ICU Junction Block | |
| 3rd ROWSEAT FOLDING | 30A | 3rd ROW Seat Folding Unit | |
| INVERTER | 30A | AC Inverter Unit | |
| TRAILER 4 | 30A | Trailer Lamp | |
| POWERLiftgate | 30A | Power Liftgate Module | |
| E-SHIFTER 1 | 40A | Electronic Transmission | |
| PTC HEATER 1 | 30A | PTC Heater Relay | |
| Fuse Name | Fuse Rating | Protected Component | |
|
PCB |
ACC 1 | 40A | PCB Block (ACC1 Relay) |
| ACC 2 | 40A | PCB Block (ACC2 Relay) | |
| ECU 5 | 30A | ECM (Main Relay) | |
| DCU 4 | 40A | Doosing Control Unit (DCU Relay) | |
| IG1 | 40A | PCB Block (IG1 Relay) | |
| WIPER 1 (FRT) | 30A | PCB Block (Wiper Main Relay) | |
| HORN | 15A | PCB Block (Horn Relay) | |
| A/C 1 | 10A | PCB Block (A/CON Relay) | |
| ACC 4 | 10A | USB Charger_luggage_LH/RH | |
|
PCB |
POWEROUTLET 2 | 20A | 2ND POWER OUTLET#2 |
| POWEROUTLET 1 | 20A | 2ND POWER OUTLET#1 | |
| ICU | 10A | PCB Block (ACC FUSE – AMP, ETC) | |
| SENSOR 1 | 10A | Fuel Pump Relay | |
|
SENSOR 2 |
10A |
[L3.8 GDI] A/C Comp Relay, Variable Intake Solenoid Valve #1/#2, Oil Pump Solenoid Valve, Oxygen Sensor Down #1/#2, Oil Control Valve #1/#2(Intake/Exhaust), Electronic Thermostat Heater, Purge Control Solenoid Valve | |
| SENSOR 5 | 10A | Oxygen Sensor Up #1/#2, CCV | |
| DCU 1 | 20A | Doosing Control Unit | |
| DCU 2 | 20A | Doosing Control Unit | |
| DUC 3 | 15A | Doosing Control Unit | |
| TCU 2 | 10A | TCM, Electronic Transmission | |
| POWER OUTLET 3 | 20A | LUGGAGE POWER OUTLET | |
| POWER OUTLET 4 | 20A | 1ST POWER OUTLET | |
| SENSOR 4 | 15A | [L3.8 GDI] Cooling Fan Controller | |
| ECU 1 | 20A | ECM | |
| Fuse Name | Fuse Rating | Protected Component | |
|
PCB |
ECU 2 | 20A | [L3.8 GDI] ECM |
| ECU 3 | 20A | [L3.8 GDI] ECM | |
| IGN COIL | 20A | [L3.8 GDI] Ignition Coil #1/#2/#3/#4/#5/#6 | |
| EPB 3 | 10A | EPB Control Module | |
| SENSOR 6 | 10A | Electronic Oil Pump | |
| ECU 4 | 10A | ECM | |
FAQs
Fuses protect electrical components from overloading, and checking/replacing them ensures the optimal functioning of the vehicle’s electrical systems.
The fuse box is typically located in the engine compartment or the interior of the vehicle.
Yes, a blown fuse can impact various electrical systems such as lights, radio, or power windows. The fuse diagram helps identify the specific fuse for each component.
Look for a melted or broken wire inside the transparent window on top of the fuse. If the wire is damaged, the fuse is likely blown.
Most fuses can be checked and replaced with a fuse puller or a pair of needle-nose pliers. Ensure you have the correct replacement fuse.
The correct amperage is usually printed on the top of the fuse. It’s crucial to replace it with a fuse of the same amperage to avoid damaging the electrical system.
No, it’s essential to use the correct amperage fuse. Using a higher amperage fuse can lead to electrical system damage or pose a fire hazard.
Some fuse boxes come with spare fuses.
Regularly inspect your fuses during routine maintenance checks. Change any blown fuses immediately to ensure optimal performance.
The fuse diagram illustrates the location and amperage of each fuse, helping you identify which one corresponds to the malfunctioning system.
Yes, the fuse box may be divided into sections, each corresponding to a specific system (e.g., lights, radio, power windows).
Yes, extreme temperatures can impact fuse performance. Store spare fuses in a cool, dry place to ensure their reliability.
If a fuse consistently blows, there may be an underlying issue. Consult your dealer or a mechanic to identify and fix the root cause.
While color coding can help identify fuses, always prioritize using the correct amperage fuse, regardless of its color.
