For the 2023 Hyundai Venue, it is very important to know how the fuses work and what the fuse box design looks like so that the vehicle runs smoothly and the electrical system stays intact. The fuse box usually sits in an easy-to-reach place, like the engine room or the cabin’s interior. It holds a group of fuses that keep different electrical parts safe from damage caused by power surges or short circuits. As fail-safes, these fuses cut off the electricity when they need to to stop more damage. The fuse box diagram is a visual guide that shows what each fuse does and how much current it can handle. This makes it easy to find the bad fuse and replace it. Protecting important systems like headlights and power windows as well as extras like music systems and climate control, the fuses are an important part of making sure the car’s electrical system works well. To keep the 2023 Hyundai Venue safe and reliable, you should learn how to fix fuses and look at the fuse box layout.
2023 – 2024 Hyundai VENUE Review, Price, Mileage, Features And Torque
FUSES![2023 Hyundai Venue-Repair Fuses-Fuses and Fuse Box-fig 1](https://www.autouserguide.com/wp-content/uploads/2024/02/2024-Hyundai-Venue-Fuses-and-Fuse-Box-Checking-and-replacing-fuses-fig-1.png)
A vehicle’s electrical system is protected from electrical overload damage by fuses. This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, and the other in the engine compartment near the battery. If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken. If the electrical system does not work, first check the driver’s side fuse panel. Before replacing a blown fuse, turn the engine and all switches off, and then disconnect the negative battery cable. Always replace a blown fuse with one of the same rating. If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but another fuse of the same rating.
- A higher capacity fuse could cause damage and possibly cause a fire.
- Do not install a wire or aluminum foil instead of the proper fuse – even as a temporary repair. It may cause extensive wiring damage and possibly a fire.
NOTICE
Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.
Instrument Panel Fuse Replacement
- Turn the engine off.
- Turn all other switches OFF.
- Open the fuse panel cover.
- Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
- Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuse panel.
- Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).
- Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle. If the headlights or other electrical components do not work and the fuses are undamaged, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced with the same rating.
Fuse Switch
Always, place the fuse switch in the ON position. If you move the switch to the OFF position, some items such as the audio system and digital clock must be reset and the smart key may not work properly.

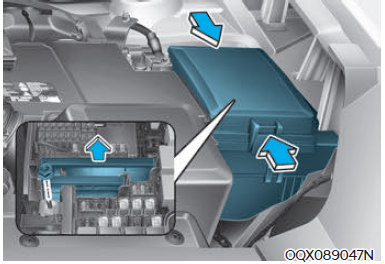

Engine Compartment Panel Fuse
Replacement
- Turn the engine off.
- Turn all other switches OFF.
- Remove the fuse panel cover by pressing the tap and pulling up.
- Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the removal tool in the engine compartment fuse panel.
- Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
CAUTION
After checking the fuse box in the engine compartment securely close the fuse box cover inside the engine compartment, until it clicks. If the fuse box is not closed properly, water may leak inside, possibly causing a malfunction with the electrical system.

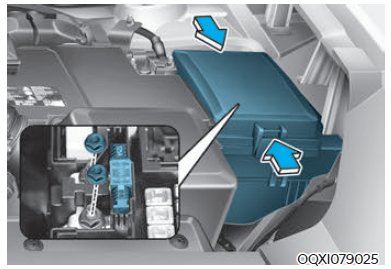

Main Fuse
If the main fuse is blown, it must be removed as follows:
- Turn off the engine.
- Disconnect the negative battery cable.
- Remove the fuse panel cover by pressing the tab and pulling it up.
- Remove the nuts shown in the picture above.
- Replace the fuse with a new one of the same rating.
- Reinstall in the reverse order of removal.
Information
If the main fuse is blown, consult an authorized HYUNDAI dealer.
Multi Fuse
If the multi fuse is blown, it must be removed as follows:
- Turn off the engine.
- Disconnect the negative battery cable.
- Remove the fuse panel cover by pressing the tab and pulling it up.
- Remove the nuts shown in the picture above.
- Replace the fuse with a new one of the same rating.
- Reinstall in the reverse order of removal.
Information
If the multi fuse is blown, consult an authorized HYUNDAI dealer.
Fuse/Relay Panel Description

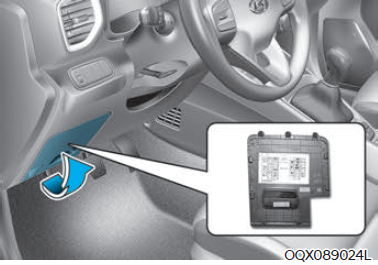

Instrument Panel Fuse Panel
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings.
Information
Not all fuse panel descriptions in this manual may apply to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

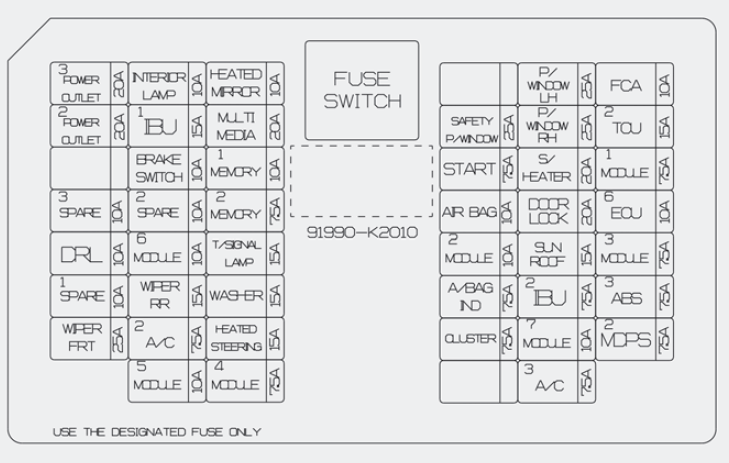

Instrument panel fuse panel
Fuse Name | (A) | Circuit Protected |
POWER OUTLET 3 | 20A | USB Charger |
INTERIOR LAMP | 10A | Front Vanity Lamp LH/RH, Room Lamp, Map Lamp |
HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module |
P/WINDOW LH | 25A | Power Window Main Switch |
FCA | 10A | Forward Collision-Avoidance Assist Unit |
POWER OUTLET 2 | 20A | Front Power Outlet |
IBU 1 | 15A | IBU |
MULTIMEDIA | 20A | Audio, A/V & Navigation Head Unit |
SAFETY P/ WINDOW | 25A | Driver Safety Power Window Module |
P/WINDOW RH | 25A | Power Window Main Switch, Passenger Power Window Switch |
TCU2 | 15A | Transaxle Range Switch, Back-Up Lamp Switch |
BRAKE SWITCH | 10A | IBU, Stop Lamp Switch |
MEMORY 1 | 10A | Instrument Cluster, A/C Control Module |
START | 7.5A | [M/T] ECM, IBU, [IVT] Transmission Range Switch |
Driver’s side fuse panel
Fuse Name | (A) | Circuit Protected |
S/HEATER | 20A | Front Seat Warmer Control Module |
MODULE 1 | 7.5A | Stop Lamp Switch, ATM Shift Lever |
MEMORY 2 | 7.5A | SRS Control Module |
AIR BAG | 10A | Passenger Occupant Detection Sensor, SRS Control Module |
DOOR LOCK | 20A | Tail Gate Relay, T/Turn Unlock Realy, Door Lock/Unlock Realy |
ECU 6 | 10A | ECM, PCM |
DRL | 10A | DRL Relay |
MODULE 6 | 10A | Data Link Connector, Key Interlock Solenoid |
T/SIGNAL LAMP | 15A | IBU |
MODULE 2 | 10A | Crash Pad Switch, Multifunction Camera Unit, Blind Spot Collision Warning Unit LH/RH |
SUNROOF | 15A | Sunroof Motor |
MODULE 3 | 7.5A | Console Switch, ATM Shift Lever Indicator, A/C Control Module, Audio, Front Seat Warmer Control Module |
Fuse Name | (A) | Circuit Protected |
WIPER RR | 15A | E/R Junction Block (Wiper RR Relay), Rear Wiper Motor |
WASHER | 15A | Multifunction Switch |
A/BAG IND | 7.5A | Center Facia Switch, Instrument Cluster |
IBU 2 | 7.5A | IBU |
ABS3 | 7.5A | E/R Junction Block (Multipurpose Check Connector), ESC Module |
WIPER FRT | 25A | E/R Junction Block (Wiper FRT Low Relay), Front Wiper Motor |
A/C 2 | 7.5A | E/R Junction Block (Blower Relay), A/C Control Module |
HEATED STEERING | 15A | Not Used |
CLUSTER | 7.5A | Instrument Cluster |
MODULE 7 | 10A | Power Outlet Relay, Power Outside Mirror Switch, IBU, Audio, A/V & Navigation Head Unit |
MDPS 2 | 7.5A | MDPS Unit |
MODULE 5 | 10A | IBU, Front Seat Warmer Control Module |
MODULE 4 | 7.5A | IBU |
A/C 3 | 7.5A | Blower Motor, A/C Control Module |
2023 – 2024 Hyundai VENUE Review, Price, Mileage, Features And Torque
Engine Compartment Fuse Panel
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings.
Information
Not all fuse panel descriptions in this manual may apply to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
Engine compartment fuse panel
Fuse Name | (A) | Circuit Protected | |
MULTI FUSE |
ALT | 125A | Alternator, Multi Fuse – MDPS 1, Fuse – Rear Heated, Blower, ABS 1, ABS 2 |
MDPS 1 | 80A | MDPS Unit | |
FUSE |
REAR HEATED | 40A | ICU Junction Block (Rear Heated Relay) |
ABS 1 | 40A | Multipurpose Check Connector, ESC Module | |
ABS 2 | 40A | ESC Module | |
BLOWER | 40A | Blower Relay | |
WIPER | 10A | Wiper FRT LO Realy, IBU | |
ECU2 | 15A | ECM/PCM | |
ECU4 | 15A | ECM/PCM | |
ECU5 | 15A | ECM/PCM | |
IGN COIL | 20A | Ignition Coil #1~#4 | |
INJECTOR | 15A | ECM/PCM, Injector #1~#4, Fuel Pump Relay | |
PTC HEATER | 50A | PTC Heater Relay | |
B+3 | 50A | ICU Junction Block (Fuse – DOOR LOCK, S/HEATER, SAFETY P/WINDOW, SUNROOF, Power Window Relay) | |
IG2 | 40A | Start Relay, PDM Relay Box (IG2 Relay), Ignition Switch |
Fuse Name | (A) | Circuit Protected | |
FUSE |
COOLING FAN | 40A | Cooling Fan 1/2 Relay |
B+4 |
40A |
ICU Junction Block (Fuse – MODULE 6, BRAKE SWITCH, T/SIGNAL LAMP, DRL, IBU 1, Leak Current
Autocut Device) |
|
ECU1 | 30A | Main Relay, Fuse – ECU 4, ECU 5 | |
A/C 1 | 10A | A/C Relay | |
FUEL PUMP | 20A | Fuel Pump Relay | |
HORN | 15A | Horn Relay | |
B+2 | 30A | ICU Junction Block (IPS (5CH) E-SWITCH, IPS (2CH)) | |
IG1 | 30A | [With Smart Key] PDM Relay Box (IG1 Relay) [W/O Smart Key] Ignition Switch | |
POWER OUTLET 1 | 40A | ICU Junction Block (Power Outlet Relay) | |
B+1 | 30A | ICU Junction Block (IPS (5CH) E-SWITCH, IPS (1CH)) |
How to replace the Fuse of the 2023 Hyundai Venue
Replacing a fuse in a car like the 2023 Hyundai Venue is a relatively simple task. Here’s a step-by-step guide:
Materials:
- The new fuse of the correct amperage.
- Fuse puller or needle-nose pliers.
Instructions:
- Locate the fuse box: In the Hyundai Venue, the fuse box is usually located in one of the following places:
- Underneath the dashboard on the driver’s side.
- In the engine compartment near the battery.
- Identify the blown fuse: Fuses are usually color-coded and labeled with their amperage rating. Use the diagram on the fuse box cover to find the fuse that corresponds to the component that isn’t working.
- Turn off the vehicle: Before you start working on any electrical components, turn off the vehicle’s engine and remove the key from the ignition.
- Remove the blown fuse: Use a fuse puller tool or a pair of needle-nose pliers to grasp the blown fuse and gently pull it straight out of its socket. Be careful not to damage the fuse box or surrounding components.
- Inspect the fuse: Check the metal strip inside the fuse to see if it’s broken or melted. This indicates that the fuse is blown and needs to be replaced.
- Select a replacement fuse: Choose a new fuse with the same amperage rating as the one you removed. Using a fuse with the wrong rating can cause electrical problems or even damage other components.
- Install the new fuse: Insert the new fuse into the empty socket, making sure it’s seated securely. You should feel or hear a click when the fuse is fully inserted.
- Test the component: Once the new fuse is in place, turn the ignition to the accessory position (without starting the engine) and test the component to make sure it’s working properly.
- Replace the fuse box cover: If you removed the fuse box cover to access the fuses, don’t forget to put it back in place securely.
- Dispose of the old fuse: Properly dispose of the old fuse. If it’s blown, it’s no longer safe to use and should be discarded.
Tips:
- Always use a fuse with the correct amperage rating to prevent electrical issues or damage to the vehicle.
- If a fuse blows repeatedly, it may indicate an underlying electrical problem and professional assistance may be needed.
FAQs
To access the fuse box in the 2023 Hyundai Venue for repairing fuses, you typically need to locate the fuse box cover, which is usually located under the dashboard on the driver’s side or in the engine compartment.
For repairing fuses in the 2023 Hyundai Venue, you may need a fuse puller tool or a pair of needle-nose pliers to safely remove and replace the fuses.
The fuse box diagram for the 2023 Hyundai Venue is often located on the inside of the fuse box cover, providing a visual guide to help identify the different fuse locations and their corresponding functions.
Common reasons for needing to repair fuses in the 2023 Hyundai Venue include electrical issues such as malfunctioning lights, power windows or locks, stereo system problems, or issues with other electrical components in the vehicle.
To determine which fuse needs to be replaced in the 2023 Hyundai Venue, you can use the fuse box diagram to identify the corresponding fuse for the malfunctioning component or system, then visually inspect the fuse to check for signs of damage or a blown fuse.
To remove a fuse in the 2023 Hyundai Venue, you can use a fuse puller tool or a pair of needle-nose pliers to gently grasp the fuse and pull it straight out of its socket, being careful not to damage the fuse or surrounding components.
When repairing fuses in the 2023 Hyundai Venue, it’s important to disconnect the vehicle’s battery before working on the electrical system to prevent the risk of electrical shock or damage to the vehicle’s electronics.
You can determine if a fuse in the 2023 Hyundai Venue is blown by visually inspecting the fuse for signs of damage such as a melted or broken filament, or by using a multimeter to test for continuity across the fuse terminals.
Ignoring a blown fuse in the 2023 Hyundai Venue can result in continued malfunction of the affected electrical component or system, potentially leading to further damage or safety hazards if left unresolved.
The 2023 Hyundai Venue may use various types of fuses, including blade fuses or mini blade fuses, depending on the specific model and trim level of the vehicle.
The amperage rating of a fuse in the 2023 Hyundai Venue is typically indicated on the fuse itself or in the fuse box diagram, specifying the maximum current that the fuse can safely handle without blowing.
When replacing a fuse in the 2023 Hyundai Venue, you should first identify the corresponding fuse for the malfunctioning component or system, then carefully remove the blown fuse and replace it with a new fuse of the same amperage rating.
The 2023 Hyundai Venue may include safety features such as fuse box covers or protective enclosures to prevent accidental contact with live electrical components, reducing the risk of electrical shock or fire hazards.
To ensure proper seating of a fuse in the 2023 Hyundai Venue, you should firmly press the new fuse into its socket until it is fully seated, ensuring a secure connection and proper electrical contact.
While there may not be a specific maintenance schedule for inspecting and replacing fuses in the 2023 Hyundai Venue, it’s a good idea to periodically check the fuses as part of routine vehicle maintenance or whenever electrical issues arise.
