Multi-information display
Display and menu Main meter in center positioncons
Display (except F SPORT models)
By selecting menu icons on the multi-information display, a variety of driving-related information can be displayed. The multi-information display can also be used to change display settings and other vehicle settings.
Warning or suggestion/advice pop-up displays are also displayed in certain situations.
Display (F SPORT models)

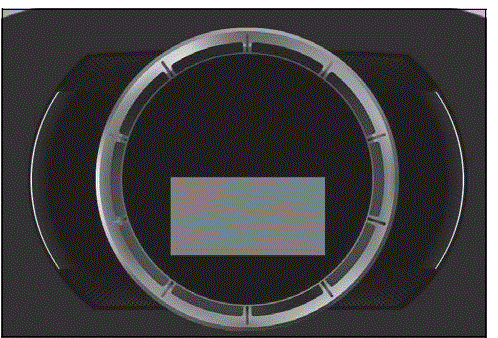

Main meter in center position
The multi-information display presents the driver with a variety of driving-related information.
Warning or suggestion/advice pop-up displays are also displayed in certain situations.

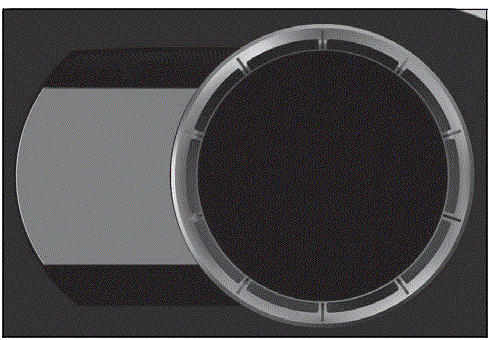

Main meter moved to the right
By selecting menu icons on the multi-information display, a variety of driving-related information can be displayed. The multi-information display can also be used to change display settings and other vehicle settings.
Warning or suggestion/advice pop-up displays are also displayed in certain situations.
Menu icons
The menu icons will be displayed by pressing
of the meter control switches.
Driving information display
Navigation system-linked display (if equipped)
Audio system-linked display
Driving support system information display
Warning message display
Settings display
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic of liquid crystal displays, and there is no problem continuing to use the display.
WARNING
Caution for use while driving
- When operating the multi-information display while driving, pay extra atten-tion to the safety of the area around the vehicle.
- Do not look continuously at the multi-information display while driving as you may fail to see pedestrians, objects on the road, etc. ahead of the vehicle.
The information display at low temperatures
Changing the meter display

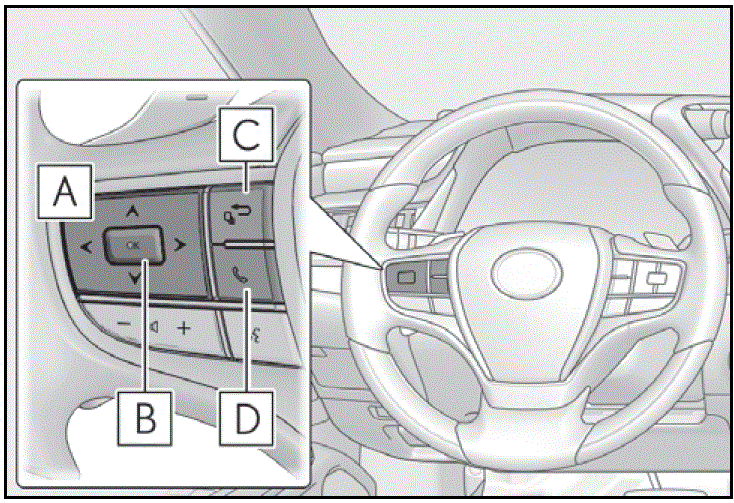

The multi-information display is operated using the meter control switches.
A Select menu icons
Change displayed content, scroll up/down the screen and move the cursor up/down
B Press: Enter/Set
Press and hold: Reset
C Move the main meter* and return to the previous screen
D Call sending/receiving and history display
Linked with the hands-free system, sending or receiving call is displayed. For details regarding the hands-free system, refer to the
“MULTIMEDIA OWNER’S MANUAL”.
*:F SPORT models
Content of driving information
Display items (except F SPORT models)
Press
of the meter control switches and select
. Then press
to display the following items:
- Drive information 1
- Drive information 2
- Energy monitor
- Tire pressure
- Display off
Display items (F SPORT models)
Main meter in center position
Press or of the meter control switches to display the following items:
- Drive information 1
- Drive information 2
- Tire pressure
- Units
- Display off
- Press
of the meter control switches and select
Then press or to display the following items: - Drive information 1
- Drive information 2
- Energy monitor
- G-force
- Tire pressure
- Display off
Drive information 1/Drive information
Displays drive information such as the following:
Use the displayed values as a reference only.
- Drive information 1
- Current fuel consumption
- Average fuel economy (after reset)
Drive information 2
- Distance (driving range)
- Average vehicle speed (after reset)
Displayed items (listed below) can be changed on
Current fuel consumption
Bar type: Displays instantaneous current fuel consumption
Average fuel economy
After reset: Displays average fuel consumption since the display was reset*1
After start: Displays average fuel con-sumption since hybrid system start
After refuel: Displays average fuel con-sumption since refuel
Average vehicle speed
After reset: Displays average vehicle speed since the display was reset*1
After start: Displays average vehicle speed since hybrid system start
After start: Displays elapsed time since hybrid system start
Distance
Driving range: Displays driving range with remaining fuel*2, 3
After start: Displays the distance driven since hybrid system start
Other Blank: No item
- To reset, display the desired item and press and hold “OK” of the meter con-trol switches.
- This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.
- When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning the power switch off, the display may not be updated.

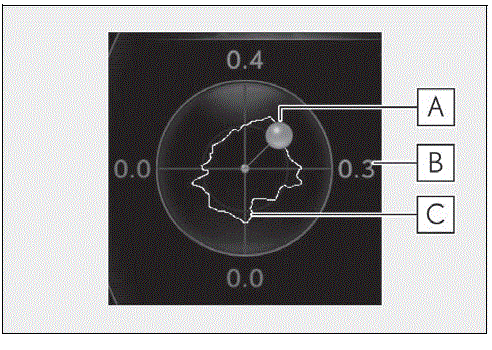

G-force (F SPORT models)
Displays lateral G-forces on the vehi-cle.
Acceleration G-force on the vehicle
Current G-force value (analyzed value of front/rear and left/right G-forces)
Record of the maximum G-forces
This display is intended for use as a guideline. Depending on factors such as the road surface condition, temperature and vehicle speed, the display may not show the actual condition of the vehicle.
- Resetting the record of maximum G-forces
Press and hold “OK” of the meter control switches to reset the record.
- Peak hold function
If lateral G-forces of 0.5 G or greater are generated, the G-force value display will turn amber and be held for 2 seconds.
Units (F SPORT models)
On some models, the units of measure used can be changed while driving.
Unlike the units setting performed on the settings display, the units setting performed on the drive information display can be changed while driving.
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
- Route guidance to destination
- Compass display (heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the meter using the meter control switches.
Driving support system informa-tion display
Select to display the operational status of the following systems:
- LTA (Lane Tracing Assist)
- Dynamic radar cruise control with full-speed range
- RSA (Road Sign Assist) (if equipped)
Settings display
Meter display settings that can be changed
Language
Select to change the language displayed.
Units
Select to change the units of measure displayed.
Speedometer display (except F SPORT models)
Select to set the display of the speedometer
to digital or analog.
Drive information 1/Drive information
2 Select to select up to 2 items that
will be displayed on each Drive information screen (Drive information 1 screen and Drive information 2 screen) respectively.
Clock
Select to switch between 12-hour display and 24-hour display.
Pop-up display
Select to enable/disable some pop-up displays for each relevant system.
Tachometer setting
Select to set the display of the Hybrid System Indicator or tachometer for each driving mode.
Rev indicator (F SPORT models)
- Select to enable/disable the rev indicator.
- Select to set the engine speed at which
the rev indicator (amber) will begin to be
displayed.
Rev peak (F SPORT models)
Select to enable/disable the rev peak.
EV indicator
Select to enable/disable the EV indicator.
Default setting
Select to reset the meter display settings to
the default setting.
Vehicle functions and settings that can be changed
- Suspension of the settings display
- Some settings cannot be changed while driving. When changing settings, park the vehicle in a safe place.
- If a warning message is displayed, operation of the settings display will be suspended.
WARNING
Cautions during setting up the display
As the hybrid system needs to be operat-ing during setting up the display, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operat-ing while setting up the display features.
Suggestion function
Displays suggestions to the driver in the following situations. To select a response to a displayed suggestion, use the meter control switches.
Suggestion to turn on the head-lights
If the headlights turn off, and the vehicle speed is 3 mph (5 km/h) or higher for a certain amount of time when the surroundings are dark, a suggestion message will be displayed.
Suggestion to turn off the head-lights
If the headlights are left on for a certain amount of time with the headlight switch in after the power switch has been turned off, a suggestion message will be displayed asking if you wish to turn the headlights off.
To turn the headlights off, select “Yes”. If a front door is opened after the power switch is turned off, this suggestion mes-sage will not be displayed.
