2024 Toyota Corolla Warning lights and indicators
Step into the advanced realm of the 2024 Toyota Corolla, where cutting-edge technology combines with enhanced safety and convenience. This advanced vehicle is equipped with a wide range of warning lights and indicators that act as your attentive co-pilot, guaranteeing a safe and seamless driving experience. These lights serve as a means of communication for your vehicle, conveying crucial information quickly and easily, ranging from important notifications about engine health to sophisticated safety features. Let us explore this technological marvel in order to comprehend how these indicators improve your driving confidence and provide you with continuous updates throughout your journey.
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center panel, overhead console and outside rear view mirrors inform the driver of the status of the vehicle’s various systems.

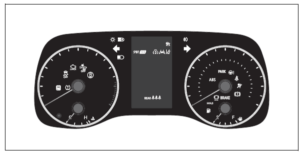

Warning lights and indicators displayed on the instrument cluster
For the purpose of explanation, the following illustrations display all warning lights and indicators illuminated.
4.2-inch display
7-inch display
Warning lights Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.
Brake system warning light*1
Brake system warning light*1
Brake system warning light*1 High coolant temperature warning light*2
Charging system warning light*1
Low engine oil pressure warning light*2
Malfunction indicator lamp*1
Malfunction indicator lamp*1
SRS warning light*1
ABS warning light*1
ABS warning light*1
Inappropriate pedal operation warning light*2
Electric power steering system warning light*1
Low fuel level warning light
Driver’s and front passenger’s seat belt reminder light
Rear passengers’ seat belt reminder lights
Tire pressure warning light*1 (if equipped)
PCS warning light*1
LTA indicator
LDA indicator
PDA indicator
Dynamic radar cruise control indicator
Cruise control indicator
Driving assist information indicator*1
Slip indicator*1
Parking brake indicator
Parking brake indicator
Brake hold operated indicator*1
- These lights come on when the engine switch is turned to ON to indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if the lights do not come on, or turn off. Have the vehicle inspected by your Toyota dealer.
- This light illuminates on the multi-information display.
- 4.2-inch display
- 7-inch display
WARNING If a safety system warning light does not come on Should a safety system light such as the ABS and SRS warning light not come on when you start the engine, this could mean that these systems are not available to help protect you in an accident, which could result in death or serious injury. Have the vehicle inspected by your Toyota dealer immediately if this occurs.
Indicators
The indicators inform the driver of the operating state of the vehicle’svarious systems.
Turn signal indicator
Headlight indicator
Tail light indicator
Headlight high beam indicator
Automatic High Beam indicatorPCS warning light*1, 2
Dynamic radar cruise control indicator
Cruise control indicator
LDA indicator LTA indicator PDA indicator
BSM outside rear view mirror indicators*1,3 (if equipped) Driving assist information indicator*1,2
Slip indicator*1
VSC OFF indicator*1, 2
Smart key system indicator*4 (if equipped)Parking brake indicator Parking brake indicator
Brake hold standby indicator*1
Brake hold operated indicator*1
Eco Driving Indicator Light*1
Low outside temperature indicator*5
Security indicator*6
“AIR BAG ON/OFF” indicator*1, 7
Sport mode indicator (if equipped)
- These lights come on when the engine switch is turned to ON to indicate that a system check is being performed. They will turn off after the engine is started, or after a few seconds. There may be a malfunction in a system if the lights do not come on, or turn off. Have the vehicle inspected by your Toyota dealer.
- This light comes on when the system is turned off.
- This light illuminates on the out-side rear view mirrors.
- This light illuminates on the multi-information display.
- When the outside temperature is approximately 37°F (3°C) or lower, this indicator will flash for approximately 10 seconds, then stay on.
- This light illuminates on the center panel.
- This light illuminates on the over-head console.
FAQs
The check engine light commonly indicates malfunctions in the engine or its associated systems. It is crucial to have the issue diagnosed by an expert in order to identify the precise problem.
The purpose of this light is to indicate a decrease in oil pressure. Cease operating the vehicle promptly, deactivate the engine, and assess the oil level. If the oil level is insufficient, supplement with additional oil. If the light continues to appear, it is advisable to seek assistance from a professional.
The battery warning light indicates a low level of power in the battery. Typically, it signifies a malfunction in the charging system. To prevent possible breakdowns, it is advisable to have the vehicle examined by a technician.
Typically, it signifies a malfunction in the charging system. To prevent possible breakdowns, it is advisable to have the vehicle examined by a technician.
This suggests a problem with the braking system. Bring the vehicle to a halt in a secure manner and inspect the levels of brake fluid. If the light continues to appear, promptly seek professional assistance.
The illumination of the Anti-lock Braking System (ABS) light signifies the presence of a possible malfunction within the ABS system. It is advisable to have the system inspected by a professional in order to guarantee the best possible brake performance.
It commonly indicates an issue with the traction control system. Make sure to have it inspected to ensure safe handling and stability.
The illumination of this light signifies a potential malfunction in the airbag system. It is imperative to promptly have it inspected for reasons of safety.
The fuel indicator light indicates the level of fuel in the vehicle’s tank. It signifies a depleted fuel level within the tank. Promptly replenish your fuel supply to prevent depletion of gasoline.
The high beam indicator may intermittently illuminate when another driver is signaling for you to lower the intensity of your high beams. Dim your headlights in such circumstances.
This indicator illuminates when the vehicle deviates from its lane without using a turn signal. Eliminate any potential sources of distraction and maintain precise control of the steering to remain within the designated lane.
The user’s text is empty. This indicates the detection of a possible collision by the sensors of the vehicle. Promptly respond to the identified obstruction or automobile to prevent any potential collision.
The blind-spot monitoring system warning light indicates the presence of a potential hazard in the blind spot area of the vehicle. It notifies you when a vehicle is detected in your peripheral vision blind spot. Prior to changing lanes, it is essential to inspect your blind spot, regardless of the status of the light.
Make sure that the parking brake is completely released. If the light continues to appear, it is possible that there is a problem with the parking brake system that requires immediate attention.
The adaptive cruise control indicator indicates the activation and operation of the adaptive cruise control system. The light is activated when the adaptive cruise control system is engaged, ensuring a consistent gap is maintained between the vehicle and the one in front. It denotes the operational state of the system.
